Oscillators

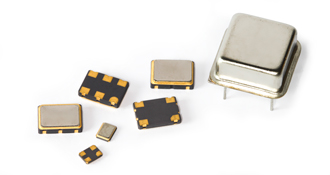

European Crystal Organization produce oscillators in a wide range of packages and output types including HCMOS, True Sinewave, LVPECL, HCSL and LVDS. Delivery leadtimes are short, even for production quantity requirements.

Picture Product Features Dimensions (mm) Frequency Range
sx1c SX1C Smallest package 2.0 x 1.6 x 0.8 mm 1.0 – 80.0 MHz
sx2c SX2C Very small package 2.5 x 2.0 x 0.9 mm 0.156 – 133.0 MHz
sx3c SX3C Wide Temperature range 3.2 x 2.5 x 1.1 mm 25 kHz – 160.0 MHz
 sx3cl SX3CL Very low current 3.2 x 2.5 x 1.1 mm 0.5 – 50 MHz
sx3cj SX3CJ Ultra Low Jitter 3.2 x 2.5 x 1.1 mm 5.0 – 50.0 MHz
sx5c SX5C Wide Temperature range 5.0 x 3.2 x 1.3 mm 25 kHz – 200.0 MHz
sx5cl SX5CL Very low current 5.0 x 3.2 x 1.3 mm 0.5 – 50 MHz
sx5cj SX5CJ Ultra Low Jitter 5.0 x 3.2 x 1.3 mm 5.0 – 50.0 MHz
sx7c SX7C Wide frequency range 7.0 x 5.0 x 1.5 mm 25 kHz – 200.0 MHz
sx7cl SX7CL Very low current 7.0 x 5.0 x 1.5 mm 0.25 – 50.0 MHz
sx7cj SX7CJ Ultra low jitter 7.0 x 5.0 x 1.5 mm 5.0 – 50.0 MHz
sx7cf SX7CF 4 frequencies switchable 7.0 x 5.0 x 1.8 mm 15.0 – 250.0 MHz
sp2c SP2C Wide frequency range 14.3 x 8.7 x 5.5 mm 1.0 – 800.0 MHz
dlhc DLHC DIL package 12.7 x 12.7 x 5.08 mm
12.7 x 12.7 x 7.48 mm
1.0 – 200.0 MHz
dlc DLC DIL package 20.7 x 13.1 x 5.08 mm
20.7 x 13.1 x 7.48 mm
1.0 – 800.0 MHz
Picture Product Features Dimensions (mm) Frequency Range
sx3ek SX3EK Jitter 0.2 ps typ. 3.2 x 2.5 x 1.1 mm 13.5 – 200 MHz
sx3eq SX3EQ Reduced jitter design 3.2 x 2.5 x 1.1 mm 10.0 – 1450 MHz
 sx3ep SX3EP next-day-delivery 3.2 x 2.5 x 1.1 mm 10.0 – 1450 MHz
sx5ek SX5EK Jitter 0.2 ps typ. 5.0 x 3.2 x 1.3 mm 13.5 – 200.0 MHz
sx5eq SX5EQ Reduced jitter design 5.0 x 3.2 x 1.3 mm 10.0 – 1450 MHz
sx5eu SX5EU Ultra Low Jitter 5.0 x 3.2 x 1.3 mm 150 – 2100 MHz
 sx5ep SX5EP next-day-delivery 5.0 x 3.2 x 1.3 mm 10.0 – 1450 MHz
sx7ek SX7EK Jitter 0.2 ps typ. 7.0 x 5.0 x 1.8 mm 13.5 – 200.0 MHz
 sx7eq SX7EQ Reduced jitter design 7.0 x 5.0 x 1.8 mm 10.0 – 1450 MHz
 sx7ep SX7EP next-day-delivery 7.0 x 5.0 x 1.8 mm 10.0 – 1450 MHz
   sx7eu SX7EU Ultra Low Jitter 7.0 x 5.0 x 1.8 mm 150 – 2100 MHz
  sx7ef SX7EF 4 Frequencies Switchable 7.0 x 5.0 x 1.8 mm 15 – 2100 MHz
sp2e SP2E Very low jitter 14.3 x 8.7 x 5.5 mm 0.75 – 800 MHz
dle DLE Wide frequency range 20.7 x 13.1 x 5.08 mm
20.7 x 13.1 x 7.48 mm
0.75 – 800 MHz
Picture Product Features Dimensions (mm) Frequency Range
 sx3lk SX3LK Jitter 0.2 ps typ. 3.2 x 2.5 x 1.1 mm 13.5 – 200 MHz
 sx3lq SX3LQ Reduced jitter design 3.2 x 2.5 x 1.1 mm 10.0 – 1450 MHz
 sx3lp SX3LP next-day-delivery 3.2 x 2.5 x 1.1 mm 10.0 – 1450 MHz
 sx5lk SX5LK Jitter 0.2 ps typ. 5.0 x 3.2 x 1.3 mm 13.5 – 200 MHz
 sx5lq SX5LQ Reduced jitter design 5.0 x 3.2 x 1.3 mm 10.0 – 1450 MHz
 sx5lp SX5LP next-day-delivery 5.0 x 3.2 x 1.3 mm 10.0 – 1450 MHz
 sx5lu SX5LU Ultra Low jitter 5.0 x 3.2 x 1.3 mm 150 – 2100 MHz
 sx7lk SX7LK Jitter 0.2 ps typ. 7.0 x 5.0 x 1.8 mm 13.5 – 200 MHz
 sx7lq SX7LQ Reduced jitter design 7.0 x 5.0 x 1.8 mm 10.0 – 1450 MHz
 sx7lp SX7LP next-day-delivery 7.0 x 5.0 x 1.8 mm 10.0 – 1450 MHz
 sx7lu SX7LU Ultra low jitter 7.0 x 5.0 x 1.8 mm 150 – 2100 MHz
 sx7lf SX7LF 4 Frequencies Switchable 7.0 x 5.0 x 1.8 mm 15 – 2100 MHz
 sp2l SP2L Very low jitter 14.3 x 8.7 x 5.5 mm 0.75 – 800 MHz
 dll DLL Wide frequency range 20.7 x 13.1 x 5.08 mm
20.7 x 13.1 x 7.48 mm
0.75 – 800 MHz
Picture Product Features Dimensions (mm) Frequency Range
 sx3hk SX3HK Excellent Phase Noise 3.2 x 2.5 x 1.1 mm 13.5 – 200 MHz
 sx5hk SX5HK Excellent Phase Noise 5.0 x 3.2 x 1.3 mm 13.5 – 200 MHz
 sx5hu SX5HU Ultra Low jitter 5.0 x 3.2 x 1.3 mm 150 – 700 MHz
 sx7hk SX7HK Excellent Phase Noise 7.0 x 5.0 x 1.8 mm 13.5 – 200 MHz
 sx7hu SX7HU Ultra Low jitter 7.0 x 5.0 x 1.8 mm 150 – 700 MHz
 sx7hf SX7HF 4 frequencies switchable 7.0 x 5.0 x 1.8 mm 15 – 700 MHz
Picture Product Features Dimensions (mm) Frequency Range
 sx5ss SX5SS Low EMI 5.0 x 3.2 x 1.3 mm 6.0 – 200 MHz
 sx5ssp SX5SSP next-day-delivery 5.0 x 3.2 x 1.3 mm 3.0 – 200 MHz
 sx7ss SX7SS Low EMI 7.0 x 5.0 x 1.8 mm 3.5 – 220 MHz
 sx7ssp SX7SSP next-day-delivery 7.0 x 5.0 x 1.6 mm 3.0 – 200 MHz
Picture Product Features Dimensions (mm) Frequency Range
 dls DLS Wide frequency range 20.4 x 12.9 x 5.08 mm 10 – 800 MHz
Picture Product Features Dimensions (mm) Frequency Range
 sx2p SX2P next-day-delivery 2.5 x 2.0 x 0.9 mm 1.0 – 200.0 MHz
 sx3p SX3P next-day-delivery 3.2 x 2.5 x 1.2 mm 1.0 – 200.0 MHz
 sx5p SX5P next-day-delivery 5.0 x 3.2 x 1.3 mm 1.0 – 200.0 MHz
 sx7p SX7P next-day-delivery 7.0 x 5.0 x 1.5 mm 1.0 – 200.0 MHz
Picture Product Features Dimensions (mm) Frequency Range
 sx2k SX2K AT-cut divider 2.5 x 2.0 x 0.9 mm 32.768 kHz
 sx2kl SX2KL AT-cut, Low current 2.5 x 2.0 x 0.9 mm 32.768 kHz
 sx3k SX3K AT-cut divider 3.2 x 2.5 x 1.2 mm 32.768 kHz
 sx3kl SX3KL AT-cut, Low current 3.2 x 2.5 x 1.2 mm 32.768 kHz
 sx3kf SX3KF Tuning-fork design 3.2 x 2.5 x 1.2 mm 32.768 kHz
 sx5k SX5K AT-cut divider 5.0 x 3.2 x 1.3 mm 32.768 kHz
 sx5kl SX5KL AT-cut , Low current 5.0 x 3.2 x 1.3 mm 32.768 kHz
 sx7k SX7K AT-cut divider 7.0 x 5.0 x 1.5 mm 32.768 kHz
 sx7kl SX7KL AT-cut , Low current 7.0 x 5.0 x 1.5 mm 32.768 kHz
